KFI 1050HD Without Flange

You are here: Home / Standard Line Filters / KFI 1050HD Without Flange
SL1050HD

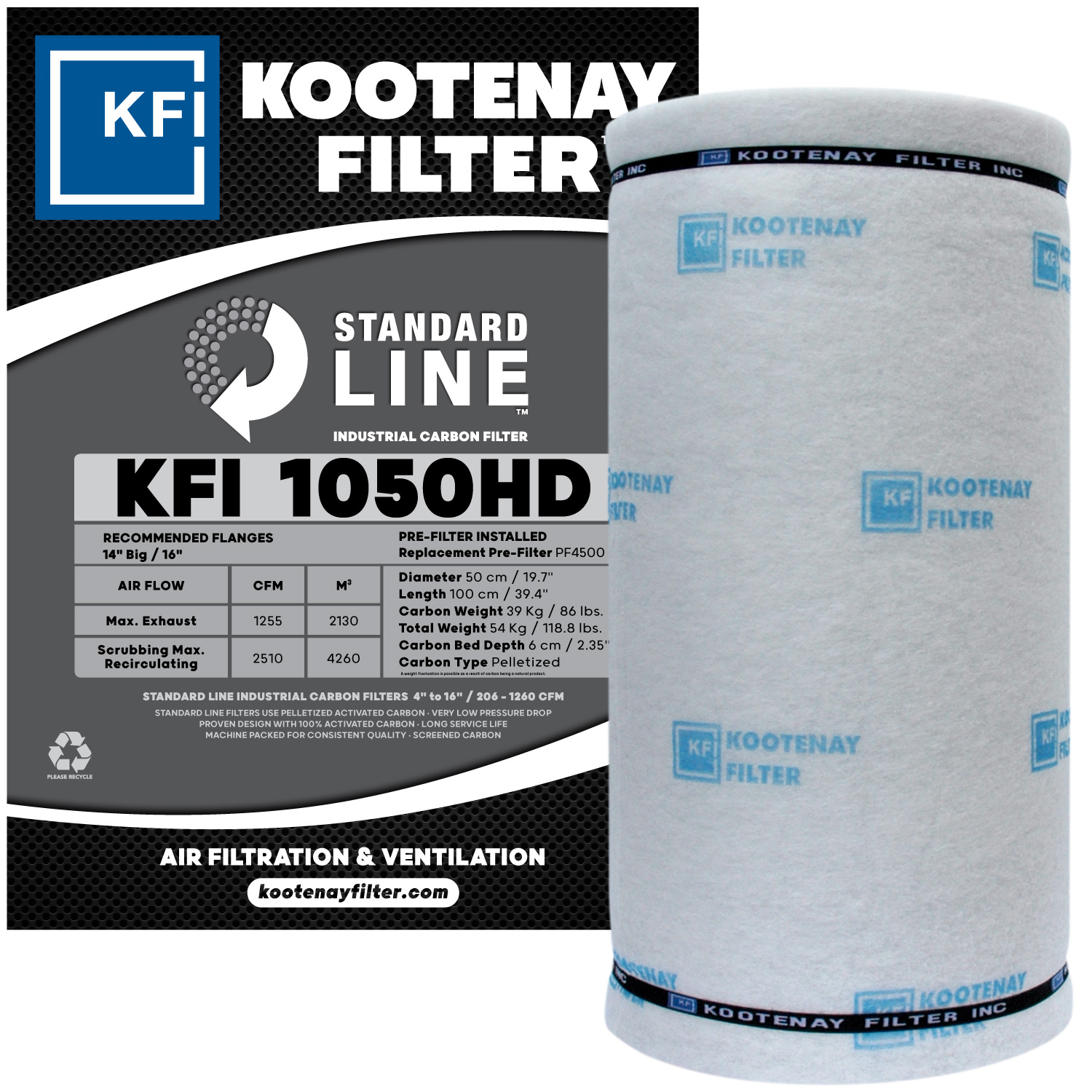

KFI 1050HD Without Flange

Carbon: Pelletized Activated Carbon CKV-4
Prefilter installed: Yes
Replacement Prefilter SKU: PF4500

CFM/M3 Ratings:
Max Exhaust CFM – 1255
Max Recirculate CFM – 2510
Max Exhaust M3 – 2130
Max Recirculating M3 – 4260

Print Friendly, PDF & EmailPrint/PDF This Page
SKU: SL1050HD Category: Standard Line Filters
  • Specifications
  • Standard Line Filters - Details

Description

SKU:SL1050HD
Carbon:Pelletized Activated Carbon CKV-4
Flanges Available:14" BIG / 16"SKU: FL14W / FL16
Prefilter Installed:Yes
Replacement Prefilter SKU:PF4500
Measurements and Weights:ImperialMetric
Outside Diameter:19.7"50cm
Lengths:39.4"100cm
Total Weight:118.8lbs54kg
Carbon Weight:86.0lbs39kg
Carbon Bed:2.35"6.0cm
Max Operating Temperature:176F80°C
Minimum Recommended Airflow:620CFM
Pressure Drop at Max CFM:180pa / 0.75"wg
Possible Fan Combinations:ExhaustRecirculating
Renegade FR 10
Renegade FR 12
Renegade EC Pro 10
Renegade EC Pro 14
Renegade Silent 10
Renegade Silent 12
Renegade FR 14
Renegade EC Pro 14

Standard Line Filters - Details

KFI Standard Line filters are made with virgin activated CKV-4 carbon. Each filter is hand made in North America using a proven filing process making this product one of the best filters on the market. At KFI we take pride in our products and ensure our customers receive the highest quality products available.

  • Virgin activated, pelletized CKV-4 Carbon
  • Dedusted and screened
  • Low pressure drop rated @0.1 sec. contact time
  • Long service life
  • Max operating temperature 80˚C / 176˚F
  • Max allowed humidity 70% (short term only)
  • Prefilter installed
  • Robust galvanized steel housing
  • Single packaged and sealed for storage
  • Made in North America
  • 2.55” carbon bed
  • KFI flanges sold separately, available in 4” to 16”
