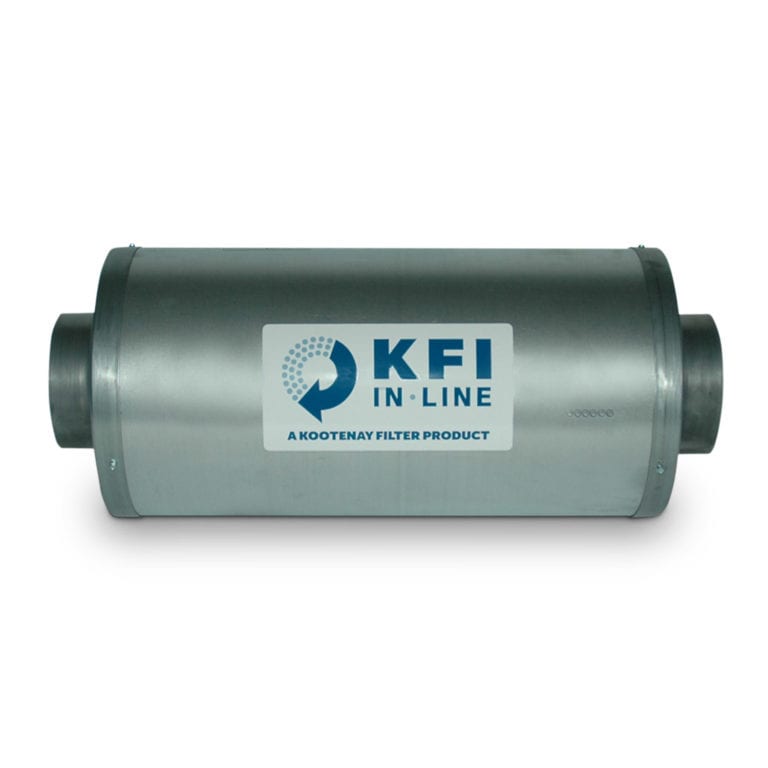

KFI In-Line 2500 with 10″ Flange

Carbon: Granulated Virgin Activated Carbon

Airflow Ratings
CFM Ratings
Max Exhaust CFM

735

Max Recirculate CFM

1470

m3/h Ratings
Max Exhaust M3

1250

Max Recirculating M3M

2500

Download PDF
Get A Quote
Airflow Ratings
Virgin Carbon
High CFM
Durable Build

About KFI In-Line 2500 with 10″ Flange

KFI In-Line Filters can be placed anywhere in the duct system between the inlet and the outlet airflow.

SKUIL-2500
CarbonGranulated Virgin Activated Carbon
Measurements and WeightsImperial Metric
Outside Diameter16.4" 41.5cm
Lengths49.8"126.5cm
Total Weight75.9lbs34.5kg
Carbon Weight26.8lbs12.2kg
Carbon Bed2.0"5.0cm
Max Operating Temperature176F80°C
Minimum Recommended Airflow365CFM
Features
  • Air flow in both directions possible
  • 2”, 50mm carbon bed depths
  • Granulated carbon for light weight
  • Galvanized steel housing and flanges
