Kootenay Filter

Activated Carbon Air Filters, Fans, Pre Filters and Flanges

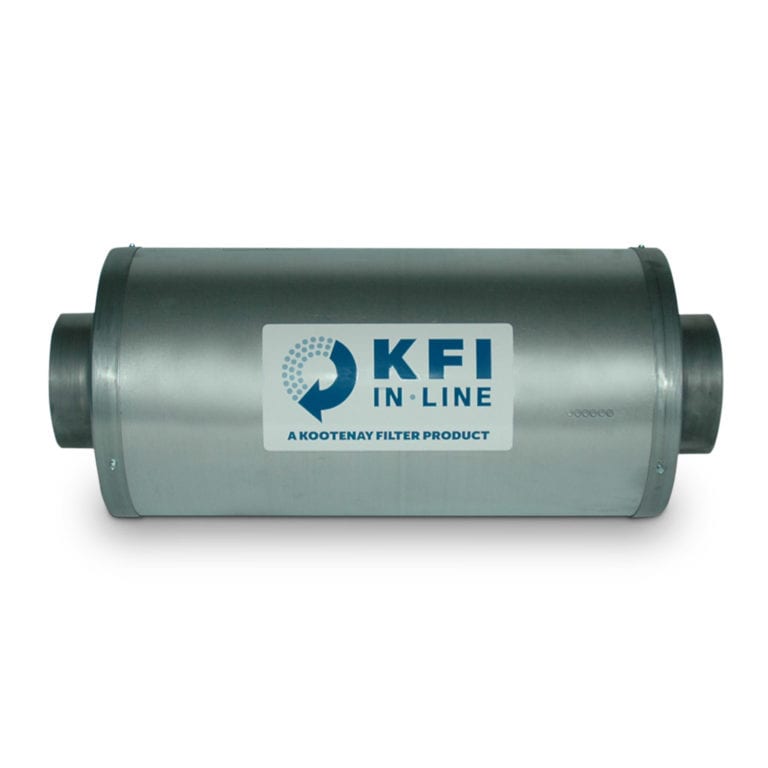

KFI In-Line 3000 with 12" Flange
KFI In-Line 3000 with 12" Flange

KFI In-Line 300 with 4″ Flange

Carbon: Granulated Virgin Activated Carbon

CFM/M3 Ratings:
Max Exhaust CFM – 88
Max Recirculate CFM – 176
Max Exhaust M3 – 150
Max Recirculating M3 – 300

Print Friendly, PDF & EmailPrint/PDF This Page
Category:

Description

SKU:IL-300
Carbon:Granulated Virgin Activated Carbon
Measurements and Weights:ImperialMetric
Outside Diameter:11.8"30cm
Lengths:28.3"72cm
Total Weight:15.4lbs7.0kg
Carbon Weight:2.65lbs1.2kg
Carbon Bed:2.0"5.0cm
Max Operating Temperature:176F80°C
Minimum Recommended Airflow:44CFM

In-Line Filters - Details

KFI In-Line Filters can be placed anywhere in the duct system between the inlet and the outlet airflow.

In-Line Filters

  • Air flow in both directions possible
  • 2”, 50mm carbon bed depths
  • Granulated carbon for light weight
  • Galvanized steel housing and flanges
KFI In-Line Filters
